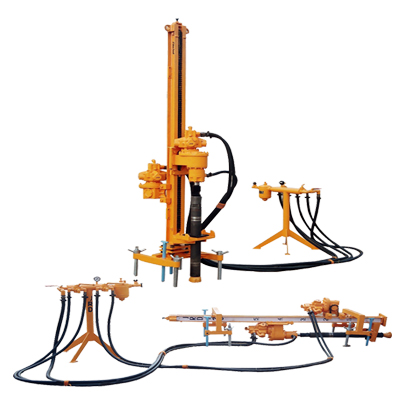

With the years of experience, we are able to offer our customers with Slim Hole Drilling Rigs. This rig is manufactured using superior grade material and refined technology in harmonization with industrial standards. In instruct to make certain quality, the offered rig is scrupulously tested on certain parameters by our quality checkers. Keeping in mind the dissimilar requirements of our clients, we offer this Slim Hole Drilling Rig in assorted sizes and specifications and at inexpensive price.

1	DTH drilling : Drilling diameter Depth (Vertical) Depth(Horizontal)	3.5" - 4.5" (90 - 115 mm) 30 meters 20 meters
2	Rotary Head BHP RPM Max.Torque	4 cylinder piston type air motor with spur type reduction gearbox. 4.5 0 - 50 1 125 Nm
3	Feed System Pull up / Pull down Pull up and pull down speed Type of feed BHP	4 cylinder piston type air motor with spur cum worm drive gearbox 0 - 2000 kgf / 0 - 2000 kgf 0 – 15 mtr/minute Chain feed 4.5
4	Air line Lubricator	Provided
5	General dimensions & weight Height / Depth / Width of rig Weight	3000 mm / 600 mm / 600 mm 470 kg
6	Air compressor Free Air Delivery Working pressure	Air compressor will be mounted on two wheel trolley ELGI / 450 cfm / 150 psi
7	Air line Lubricator Make / Capacity	Min 10.3 m3/min (365 cfm) 7.03 kg/cm2 (100 psi) Max 12.7 m3/min (450 cfm) 10.5 kg/cm2 (150 psi
