Hara Rock Drills

S.NO.	Description	Size	Units
1	Hammer Length without Bit	998	mm
2	Hammer Outside Dia	98	mm
3	Hammer Weight	42	Kg
4	Hole Size	115 ~ 127	mm
5	Wrench Size	75 A/F	mm
6	Top Sub thread connection	2 3/8" API Reg. Box
7	Suitable Bit Sizes	115 ~ 127	mm
8	Suitable Shank	Panther	mm

Units		Air Consumption
psi	150	200	300
cfm	190	270	330

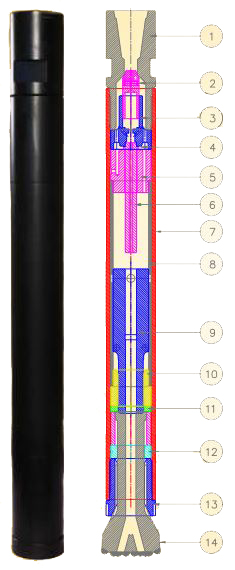

S.NO.	Item Name	Item No.	Qty.	Wt.(Kg.)
1	Top Sub	HHD40_201	1 No.	7.00
2	Check Value	HHD40_202	”	0.30
3	Top Valve	HHD40_203	”	1.50
4	Rocker Valve	HHD40_204	”	0.05
5	Bottom Valve	HHD40_205	”	3.00
6	B.V. Stem	HHD40_206	”	-
7	Wear Sleeve	HHD40_207	”	16.00
8	Liner	HHD40_208	”	3.00
9	Piston	HHD40_209	”	6.00
10	Guide Bush	HHD40_210	”	1.00
11	G.B. Spacer	HHD40_211	”	0.40
12	Bit Retaner Ring	HHD40_212	”	0.45
13	Front Chuck	HHD40_213	”	3.00
14	Panther Bit	HHD02_45	”	7.60
15	Hammer Assembly	HHD40	”	42.00

HHP40 (Panther) Hammer
